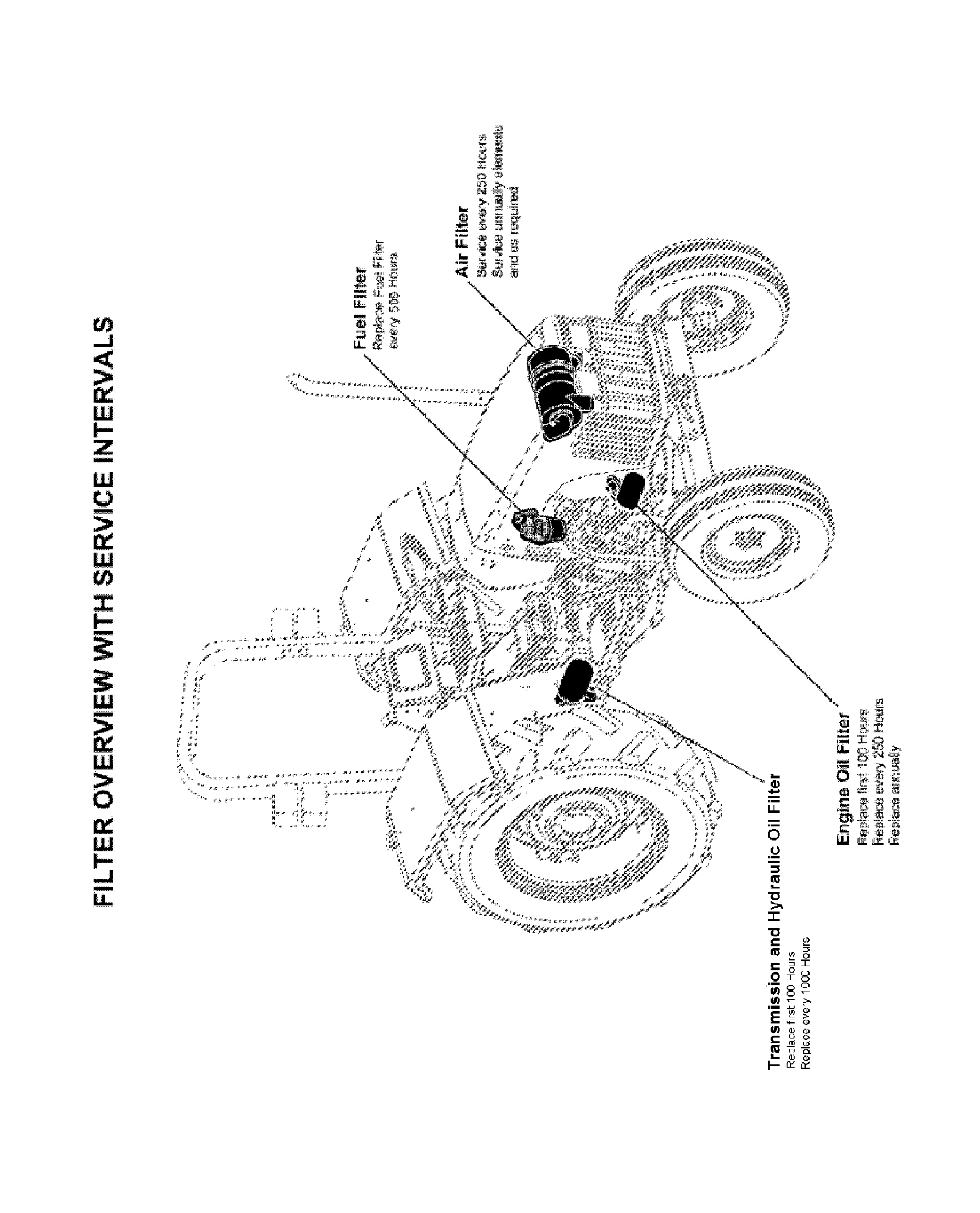

Service Intervals

PY8028-19-14JUL08

Every 10 Hours

• Check engine oil level
• Check coolant level
• Drain water and sediment from fuel tank and fuel filter
• Lubricate tie rod ends¹
• Lubricate steering spindles¹
• Lubricate front axle pivot pin(s)¹
• Lubricate rear axle bearings¹

Every 50 Hours

• Check transmission-hydraulic system oil level
• Check MFWD axle hub oil level
• Clean and check battery
• Inspect all tires
• Lubricate front axle pivot pin(s)
• Lubricate steering spindles
• Inspect tractor for loose nuts and bolts

First 100 Hours

• Change engine oil and filter²
• Replace transmission-hydraulic filter

Every 250 Hours

• Service air cleaner
• Change engine oil and filter³
• Replace transmission-hydraulic filter³
• Clean and check battery³
• Inspect and adjust alternator/fan belt
• Lubricate 3-point hitch
• Check neutral start system
• Check clutch pedal free travel

Every 500 Hours

• Replace fuel filter

Every 600 Hours

• Change oil in MFWD axle housing
• Clean engine crankcase vent tube
• Repack front wheel bearings (Adjustable front axle)
• Check and tighten all hoses and hose clamps
• Check cooling system for leaks
• Lubricate rear axle bearings
• Check engine idle speeds
• Have your John Deere dealer:

  Check front axle pivot pin

  Adjust engine valve clearance

  Inspect fuel injectors

Every 1200 Hours

• Change transmission-hydraulic oil and filter
• Clean transmission-hydraulic pickup screen

Annually

• Replace air cleaner elements³

Every 2 Years or 2000 Hours (Whichever Comes First)

• Flush cooling system

Service As Required

• Service air cleaner
• Adjust throttle friction
• Drain water and sediment from fuel tank and fuel filter⁴
