Fuse Size and Function

PY8004-UN-27MAR08

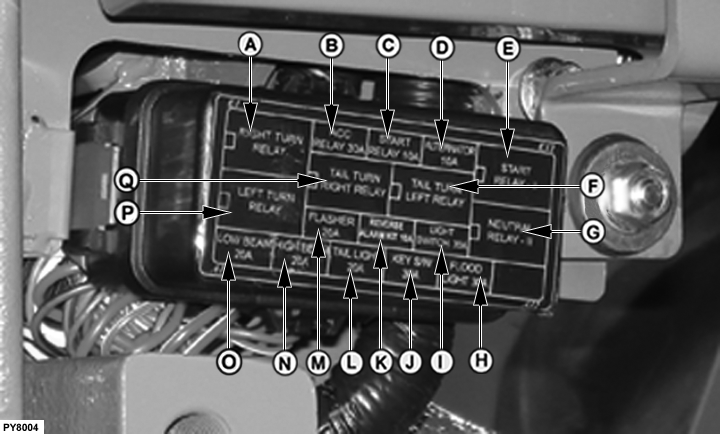

Fuse Box

A - Right Turn Relay

B - 30A-ACC Relay

C - 10A-Start Relay

D - 10A-Alternator

E - Start Relay-I

F - Tail Turn Left Relay

G - Neutral Relay-II

H - 30A-Flood Light

I - 30A-Light Switch

J - 30A-Key Switch

K - Reverse Alarm Kit

L - 20A-Tail Light

M - 20A-Flasher

N - 20A-High Beam

O - 20A-Low Beam

P - Left Turn Relay

Q - Tail Turn Right Relay
