Daily Service Before Starting Engine

To prevent trouble from occurring, it is important to know the condition of the tractor well before starting the engine.

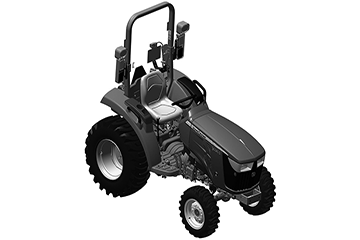

Walk around and start with a visual inspection of your tractor.

PY49644-UN-01AUG18

Visual Checks:

NOTE: Park tractor on level ground before executing checks.

• Check and refill engine oil.
• Check and refill engine coolant.
• Check hydraulic-transmission oil level.
• Check and refill fuel tank.
• Check and drain water from separator.
• Check any leakages of engine oil, engine coolant, or fuel.
• Check and clean radiator fins, screen as necessary.
• Check cooling fan V-belt for wear and tension.
• Check battery and battery terminals.
• Check the electrical harnesses for cracks, abrasions, and damaged or corroded connectors.
• Check lights, turn indicators, gauges, and hour meter.
• Check hoses for cracks, abrasions, and damaged, loose, or corroded clamps.
• Check for any loose, missing, or damaged fasteners or missing parts.
• Check and adjust brake pedal.
• Check the tractor's tire pressure.
• Check seat belt and ROPS.

NOTE: The necessary corrective action must be taken before you operate the engine, if any problem is acknowledged during the visual check.
