Oil Pressure Indicator
APY09885-UN-02JUL18

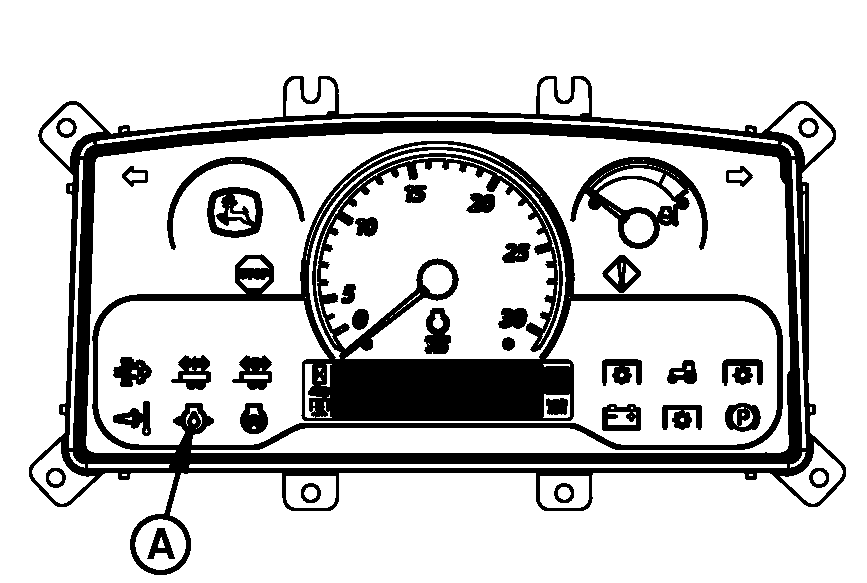

A - Oil Pressure Indicator
If engine oil pressure is low, oil pressure indicator (A) lights. Indicator light turns ON when key is turned to engage the starter and turns OFF when the engine starts.IMPORTANT: Operate engine with sufficient oil pressure. If indicator glows longer than 5 seconds under normal operating conditions, STOP the engine and check for the cause.
If low oil level is not the problem, contact your John Deere dealer.
|
DP97633,000001A-19-20180702 |
