Filter Overview

For 3025D

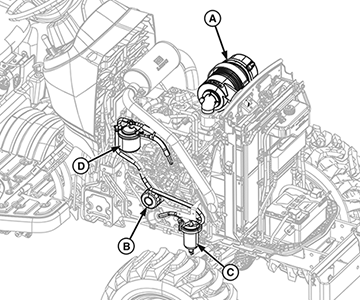

APY08253-UN-11JUL18

3025D, Right-Hand Side

A - Engine Air Intake Filter

B - Engine Oil Filter

C - Water Separator

D - Fuel Filter

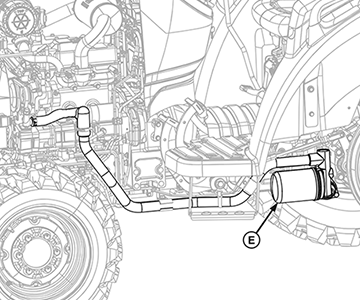

APY08254-UN-11JUL18

3025D, Left-Hand Side

E - Hydraulic-Transmission Oil Filter

For 3035D

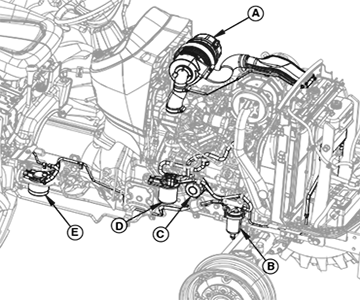

APY03041-UN-11JUL18

3035D, Right-Hand Side

A - Engine Air Intake Filter

B - Water Separator

C - Engine Oil Filter

D - Secondary Fuel Filter

E - Primary Fuel Filter

F - Hydraulic-Transmission Oil Filter

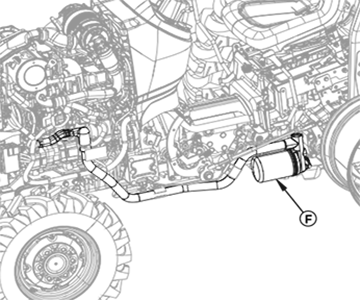

APY03042-UN-11JUL18

3035D, Left-Hand Side

F - Hydraulic-Transmission Oil Filter

For 3043D

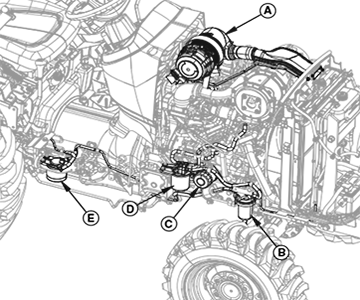

APY03039-UN-11JUL18

3043D, Right-Hand Side

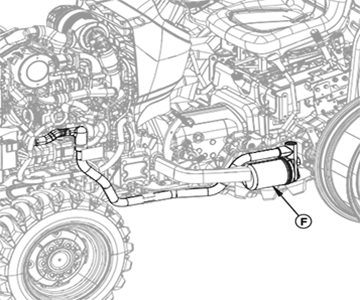

APY03040-UN-11JUL18

3043D, Left-Hand Side

A - Engine Air Intake Filter

B - Water Separator

C - Engine Oil Filter

D - Secondary Fuel Filter

E - Primary Fuel Filter

F - Hydraulic-Transmission Oil Filter
