Working with Speed/Hour Meter

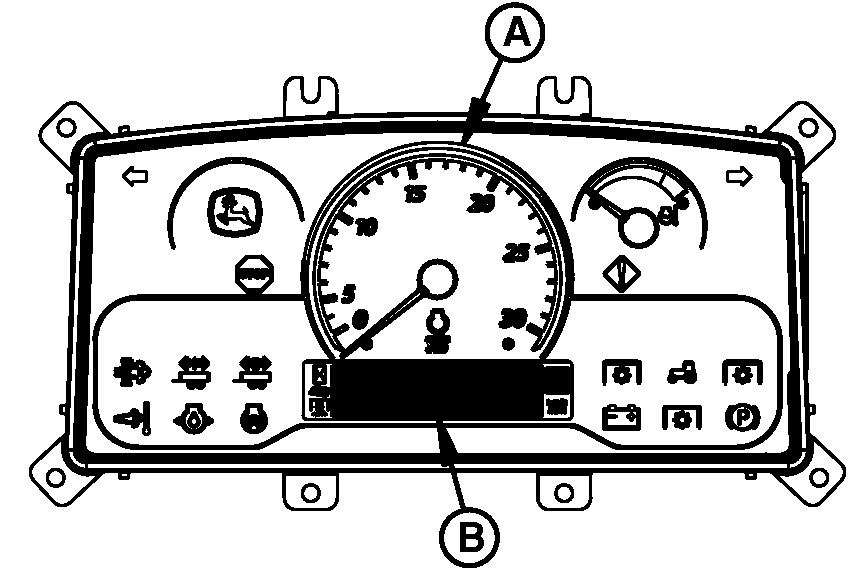

  1. APY09888
    APY09888-UN-02JUL18

    A - Tachometer

    B - Hour Meter

    Tachometer (A) shows engine rpm, read in hundreds.


  2. For 540 rpm PTO speed, increase engine speed until tachometer needle is aligned with 2400 rpm for 3025D, 2800 rpm for 3035D and 3043D mark PTO 540.

  3. Hour meter (B) shows hours of operation in full hours and tenths.

DP97633,000001C-19-20180702
