Driving on Public Roads

APY02479-UN-19FEB18

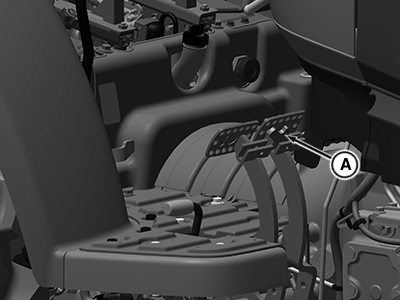

A - Brake Pedal Locking Bar

CAUTION: When driving on a public road or highway, use accessory lights and devices for the adequate warning to operators of other vehicles. Check local government regulations. Various safety devices are available from your John Deere dealer. Keep safety items in good condition. Replace missing or damaged items.

Observe the following precautions when operating the tractor on the road:

1. CAUTION: Before operating tractor on a road, lock brake pedals together. Use brake lightly and cautiously at transport speeds.

   Couple brake pedals together using brake pedal locking bar (A) to avoid hard applications of brakes. Reduce speed if towed load weighs more than the tractor and is not equipped with brakes.

   IMPORTANT: To prevent unnecessary wear, never rest your foot on the brake pedals while riding the tractor.

2. Use additional caution when transporting towed loads under adverse surface conditions and when turning or braking on inclines. Be sure that wheel tread is adjusted wide to provide maximum stability.

3.
   APY02441-UN-17JAN18


   PY49470-UN-31DEC18

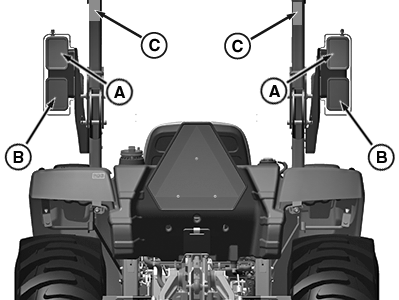

   A - Turn Signal Lights

   B - Warning Lights

   C - Reflex Reflector

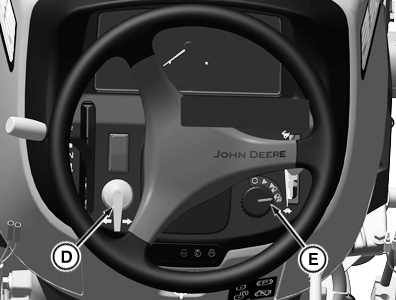

   D - Turn Signal Lever

   E - Low Beam Headlight Switch Position

   Check local laws and regulations for lighting requirements. Be sure reflex reflector (C) and warning lights (B) are clean and visible. If towed or rear-mounted equipment obstructs these safety devices, install warning lights on equipment. (Contact your John Deere dealer).

---




4. Turn light switch to low beam headlight position (E).

   Always turn the light switch to low beam lights position (E) while crossing another vehicle. Never use worklights or any other lights which can obstruct the visibility of other drivers.

5. Use turn signal lever (D) while turning and ensure that the lever is returned to center position after the turn is completed.

6. Drive slowly enough to maintain control at all times. Before descending a hill, shift to a gear low enough to control speed without using brakes. Slow down for rough ground, and sharp turns, especially while transporting heavy, rear mounted equipment.
