Using Differential Lock

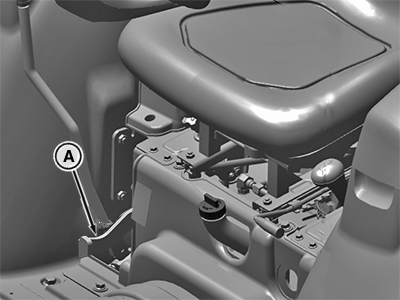

PY49654-UN-14NOV17

A - Differential Lock Pedal

CAUTION: DO NOT operate the tractor at high speed or attempt to turn with the differential lock engaged.

IMPORTANT: To prevent damage to drivetrain, do not engage differential lock when one wheel is spinning and the other is at rest.

When one wheel starts to lose traction, engage differential lock by pressing differential lock pedal (A) down. Tractor wheels must be turning before engaging differential lock. If possible, engage differential lock before entering conditions where tires can slip.

Unequal traction keeps the lock engaged. When traction equalizes, lock disengages itself by spring action. If lock does not disengage, depress one brake pedal and then the other.

If tires repeatedly slip, then get traction, and then slip again, hold pedal in the engaged position.
