Use Tail Lights

PY43078
PY43078-UN-07AUG17

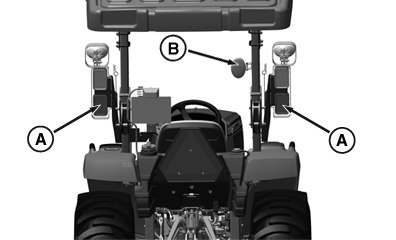

A - Tail Lights

B - Work Lamp

Red tail lights (A) are switched ON by headlight switch position.

Ensure that tail light lenses are clean before driving on a road, so other drivers can see it easily.

CAUTION: Prevent collisions between the other road users, slow moving tractors with attachments or towed equipment, and self-propelled machines on public roads. Frequently check for traffic from the rear, especially in turns, and use turn signal lights.

Use headlights, flashing warning lights, and turn signals day and night. Follow local regulations for equipment lighting and marking. Keep lighting and marking visible and in good working order. Replace or repair lighting and marking that has been damaged or lost. A safety lighting kit for implement is available from your John Deere dealer.

DP97633,0000025-19-20180211
