Check Engine Oil Level

1. Park tractor on a level ground before checking engine oil level.

2.

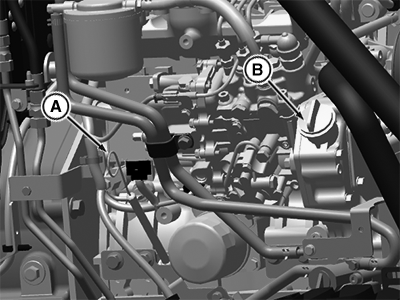

   PY45761-UN-24AUG17

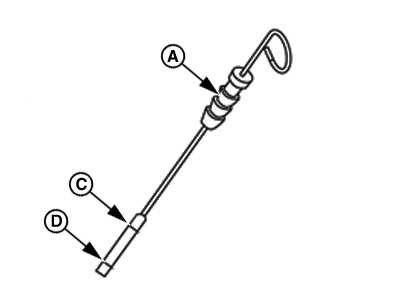

   PY22023-UN-25FEB15

   A - Engine Oil Dipstick

   B - Engine Oil Filler Port

   C - Upper Mark

   D - Lower Mark

   Remove engine oil dipstick (A) wipe with clean cloth and reinsert fully. Once again remove the dipstick and check oil level.

---




3. Engine operation is safe when the oil level is between the upper and lower marks (C and D) on dipstick.

   IMPORTANT: DO NOT operate engine, when oil level is below lower mark on dipstick.

4. In this case add specified oil through oil filler port (B). See Engine Oil in section 85 for more information.
