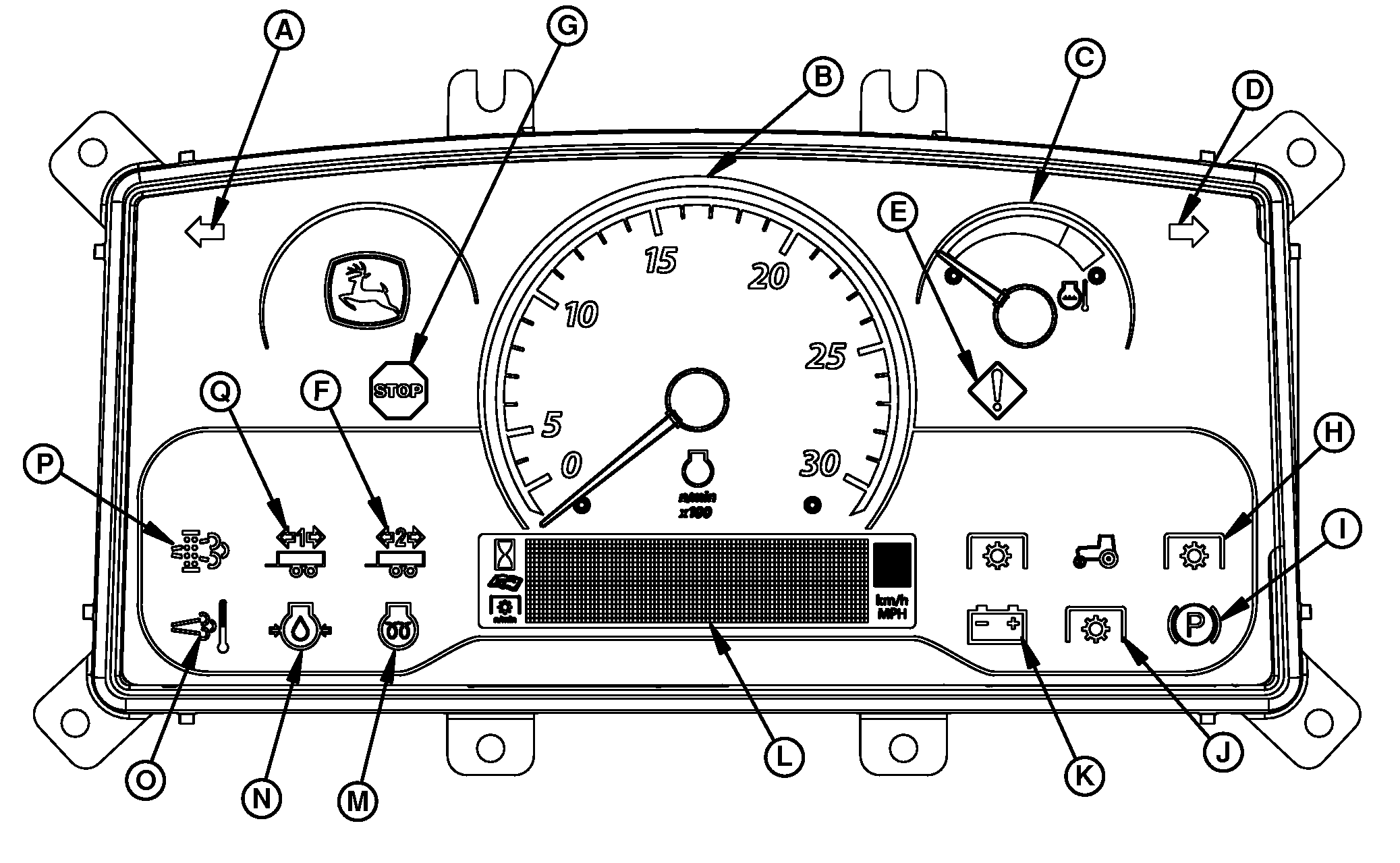

Instrument Control Panel

PY48361-UN-25JUN18

A - Warning Indicator - Turn Left

B - Tachometer

C - Coolant Temperature Gauge

D - Warning Indicator - Turn Right

E - Service Alert Indicator

F - Not Used

G - Stop Indicator

H - Not Used

I - Parking Brake Light

J - Rear PTO

K - Alternator/Battery Charging Light

L - Information Display

M - Engine Glow Plug Indicator Light

N - Engine Oil Pressure Light

O - High Exhaust Temperature Indicator (if equipped)

P - Exhaust Filter Indicator (if equipped)

Q - Not Used

B - Tachometer - Shows engine speed. Engine speed is shown in 100 rpm. Example: If indicator is pointing at 20 (20 x 100 = 2000 rpm).

C - Engine Coolant Temperature Gauge - Indicates temperature of cooling system. If gauge needle reaches red range, engine is overheating and engine rpm derates.

If engine is overheated, remove load on the machine immediately. Reduce engine to idle speed and allow engine to cool. STOP engine. Check coolant level in overflow bottle and check for air flow blockage to radiator. If coolant level is correct and needle stays in red range after cleaning grille, STOP engine.

D - Right Turn Signal/Warning Flasher Indicator Light - Flashes when turn signal switch is moved to right turn position, or when light switch is turned to warning flasher lights ON or road position.

E - Service Alert Indicator - Illuminates when a malfunction occurs (review error message in Information display). If necessary, get your John Deere dealer to diagnose the vehicle.

F- Not Used.

G- Stop Indicator - Illuminates when a serious malfunction occurs, shutoff engine IMMEDIATELY and determine cause (review error message in Information Display). If necessary, contact your nearest John Deere dealer.

H - Not Used.

I - Parking Brake Light - Illuminates when ignition key is in ON position and park brake is locked.

J - Rear PTO

K - Alternator/Battery Charging Light - Illuminates when the ignition key is in ON position and engine is not running. If light turns on while engine is running, alternator is not charging battery. Move engine speed control lever to full throttle position. STOP engine if light remains on.

L - Information Display - Displays speedometer, hour meter, PTO hours, PTO speed, regeneration information, and diagnostic trouble codes (if active).

M - Engine Glow Plug Indicator Light - Illuminates when ignition key is in ON position and engine glow plug reaches temperature. Glow plugs are energized whenever starter is engaged.

N - Engine Oil Pressure Light - Illuminates when ignition key is in ON position and the engine is not running. If this light turns on while engine is running, engine oil pressure is too low. STOP engine.

O - High Exhaust Temperature Indicator (If equipped) - Illuminates when the temperatures are high enough inside the exhaust filter to allow active filter cleaning.

P - Exhaust Filter Indicator (If equipped) - Illuminates when soot levels in the filter are high and exhaust filter cleaning is needed.

Q - Not Used.
