Check Transmission-Hydraulic Oil Level

1. IMPORTANT: Check oil level when oil is cold. If possible, check the oil level after tractor has not been used for hours.

   Park tractor on level ground.

2. Apply park brake.

3.
   PY47304-UN-16AUG17


   APY02444-UN-15JAN18

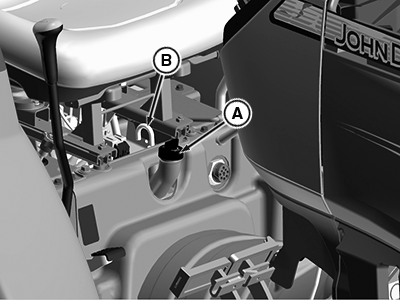

   A - Transmission Oil Filler Cap

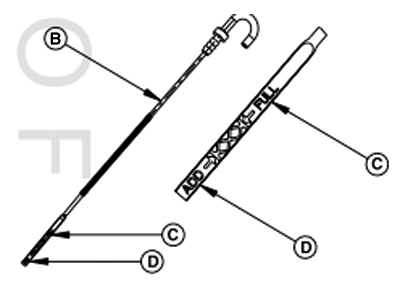

   B - Dipstick, Transmission-Hydraulic Oil

   C - Full Mark

   D - Add Mark

   Lower implement to the ground.

---




4. Remove dipstick (B) located below the operator seat and wipe clean. Fully insert the dipstick and remove again.

5. IMPORTANT: Avoid damage! DO NOT overfill transmission. Oil expands during operation and could overflow.

   Oil level must be in between full mark (C) and add mark (D) mark as shown on dipstick.

6. If oil level is below the add mark (D), add oil through transmission oil filler cap (A) until the full mark (C).

   NOTE: Add Low Viscosity Hy-Gard™ or equivalent.
