Battery Charge Indicator
APY09886-UN-02JUL18

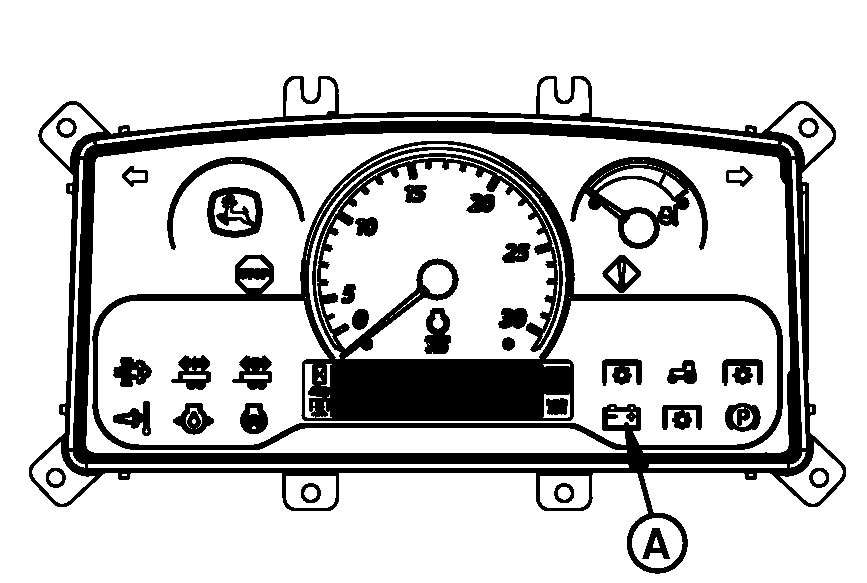

A - Battery Charge Indicator
Battery charge indicator (A) lights when alternator output is low. Indicator light turns ON when key is turned to engage starter, and turns OFF when engine starts.If indicator glows for longer than 5 seconds in normal operation, stop engine and check for cause. If loose or broken fan belt is not the cause, contact your John Deere dealer.
|
