Inspect Tires

1.

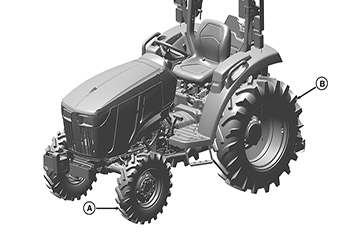

   PY49657-UN-12JUL18

   A - Front Tire

   B - Rear Tire

   Check tires daily for damage or noticeably low pressure.

---




2. Have any cuts or breaks contact your nearest authorised John eere dealer.

3. Protect tires from exposure to sunlight, petroleum products, and chemicals.

4. Drive carefully. Try to avoid rocks and sharp objects.

   IMPORTANT: Minimum pressures may be used only for light loads and only if the tractor has no added weight. If you install ballast or mounted implements, or if you pull heavy loads, increase tire pressure.

5. Check tires with an accurate gauge having 10 kPa (0.1 bar) (1 psi) graduations.

   NOTE: If tires contain liquid ballast, use a special air-water gauge and measure with valve stem positioned toward bottom.

   For Tire Inflation Pressure Chart refer to Wheels, Tires and Treads section.
