Operate Foldable ROPS

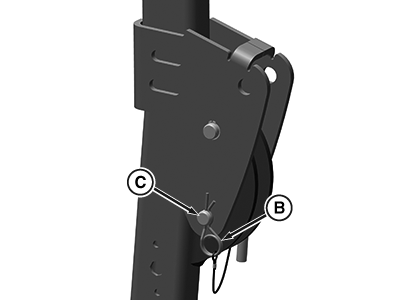

PY49662-UN-16NOV17

B - Quick Lock Pins (2 Used)

C - Headed Pins (2 Used)

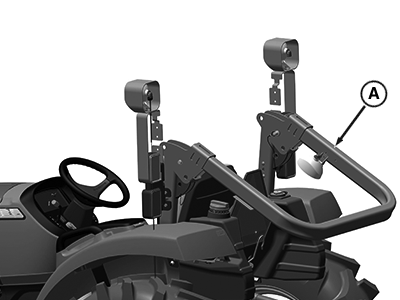

PY49661-UN-16NOV17

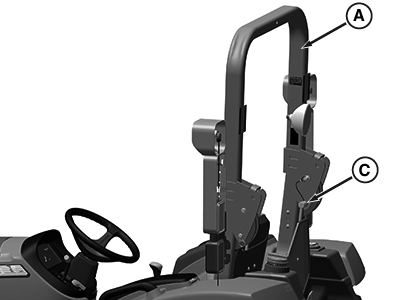

PY49663-UN-16NOV17

A - ROPS Crossbar

C - Headed Pins (2 Used)

CAUTION: Make certain all parts are installed correctly if roll-over protective structure (ROPS) is loosened or removed for any reason. Tighten mounting bolts to proper torque.

Protection offered by ROPS is impaired if ROPS is subjected to structural damage, as in an overturn incident, or is in anyway altered by welding, bending, drilling, and cutting. A damaged ROPS must be replaced, not reused. Any alteration to the ROPS must be approved by the manufacturer.

Always keep upper part of ROPS pinned in vertical position (as shown) when operating tractor. If tractor is operated with ROPS folded (for example, to enter a low building) drive with extreme caution and DO NOT use seat belt.

Fold the ROPS up again as soon as the tractor is operated under normal conditions.

To Lower ROPS Crossbar (A):

1. Remove quick-lock pins (B) and headed pins (C) on both sides of ROPS.

2. Lower crossbar (A) of ROPS onto stops.

To Put ROPS in Operating Position:

1. Lift crossbar (A) of ROPS to position shown.

2. Reinstall quick lock pins (B) and headed pins (C) into bottom holes of ROPS to lock in position.
