Replacing Glow Plug Relay and Starter Engage Relay

1.

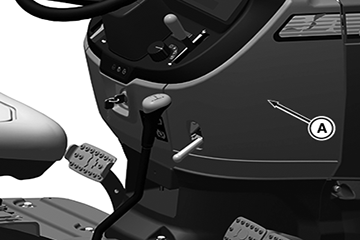

   APY08233-UN-03JUL18

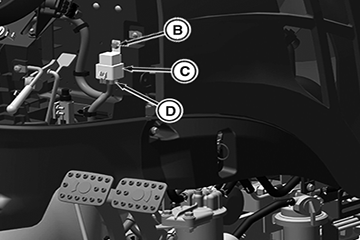

   APY08234-UN-03JUL18

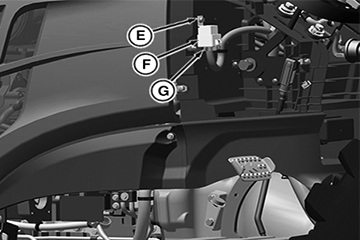

   APY08235-UN-03JUL18

   A - Side Cowl

   B - Bolt

   C - Glow Plug Relay

   D - Electrical Connector

   E - Bolt

   F - Starter Engage Relay

   G - Electrical Connector

   Park machine safely. See Park Machine Safely (section 5) in this manual.

---




2. Remove side cowl (A).

3. Identify glow plug relay (C) and starter engage relay (F) from front wiring harness.

4. Remove electrical connectors (D and G) from the glow plug relay (C) and starter engage relay (F) respectively.

5. Remove bolts (B and E).

6. Connect the electrical connectors (D and G) to the glow plug relay (C) and starter engage relay (F) respectively.

7. Tighten the bolts (B and E).

8. Install side cowl (A).
