Use Turn Signals

APY08224-UN-31DEC18

PY43079-UN-07AUG17

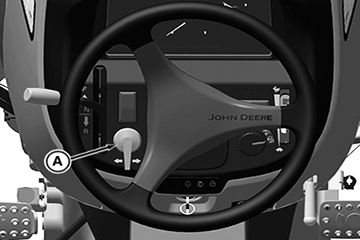

A - Turn Signal Lever

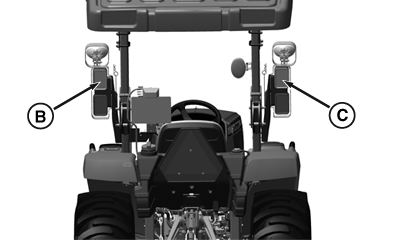

B - Left-Hand Lights

C - Right-Hand Lights

APY08223-UN-29JUN18

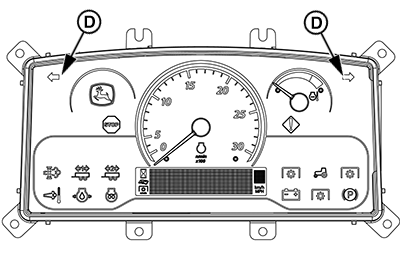

D - Turn Indicator Lights

Move turn signal lever (A) to the left to indicate left-hand turn or to the right side for right-hand turn. Turn indicator light (D) flashes to signal turn direction.

When the lever is right, front and rear facing lights on the right-hand side (C) flash while left-hand lights (B) glow steady. Left-hand lights (B) flash and right-hand lights (C) glow steady when lever is left.

NOTE: Be sure to return turn signal lever to center position after turning.
