Use Rear Work Lamp

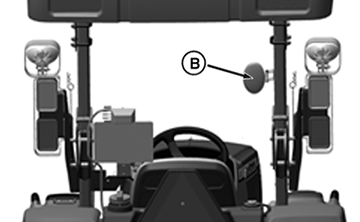

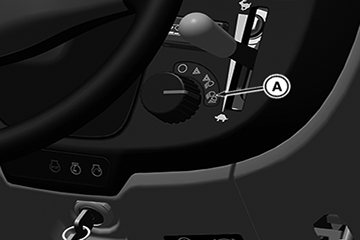

Work lamp (B) is switched on when the switch is moved to work lamp position (A).

APY08227-UN-02JUL18

APY08228-UN-02JUL18

A - Low Beam Headlights/Work Lamp

B - Work Lamp

CAUTION: When operating on a road, move light switch to low head light position. Never use rear work light when transporting. A clear, bright light at the rear of the tractor could confuse drivers of other vehicles as they approach from the rear.
