Adjust Headlights

1.

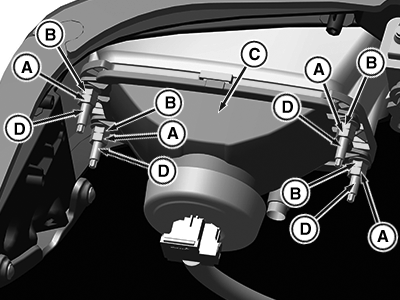

   APY02435-UN-22DEC17

   A - Lock Nut

   B - Lock Nut

   C - Headlight

   D - Head Lamp Adjusting Screw

   Open hood.

---




2. Tighten upper two screws (D) counterclockwise and loosen lower two screws (D) clockwise to lower beam.

3. Tighten lower two screws (D) counterclockwise and loosen upper two screws (D) clockwise to raise beam.

4. To adjust beam in toward center of tractor, adjust all screws (D). (See Aim Headlight in this section.)
