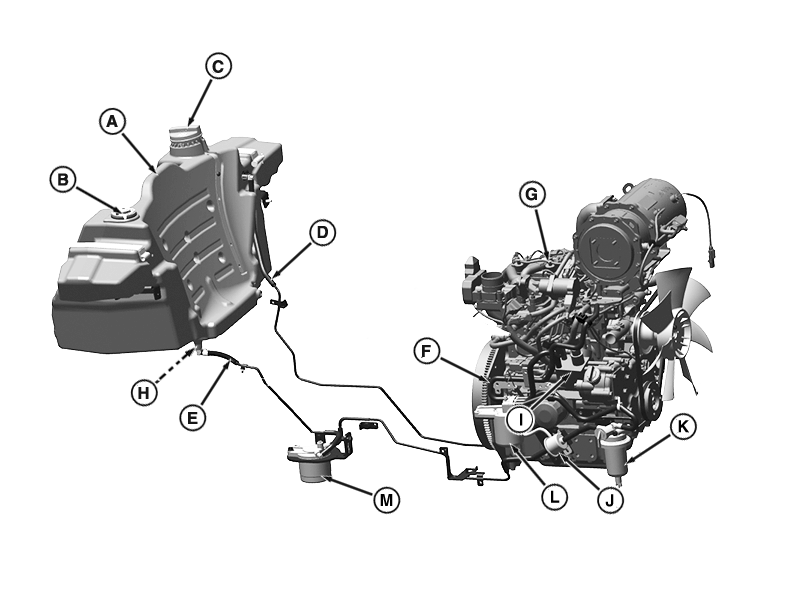

Fuel System Components (For 3035D and 3043D)

APY02486-UN-05JUN18

A - Fuel Tank

B - Fuel Level Sensor

C - Fuel Filler Cap

D - Return Fuel Line Hose

E - Tank to Filter Inlet Hose

F - Fuel Filter to Injector Pump Hose

G - Injector Nozzle (3 used)

H - Fuel Tank Strainer

I - High Pressure Injection Pump

J - Fuel Transfer Pump

K - Water Separator

L - Secondary Fuel Filter

M - Primary Fuel Filter
