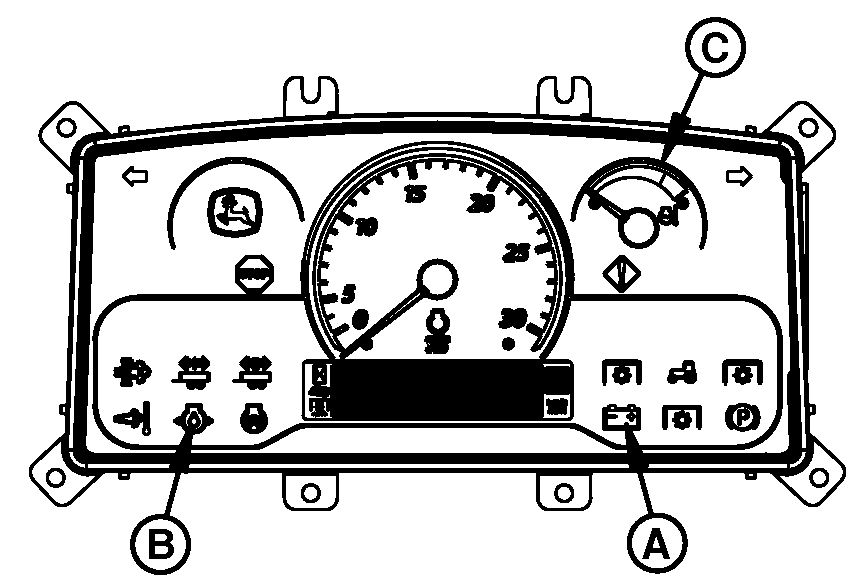

Check Instruments After Starting

APY09884-UN-02JUL18

A - Battery Charge Indicator

B - Oil Pressure Indicator

C - Coolant Temperature Gauge

IMPORTANT: If battery charge indicator (A) or oil pressure indicator (B) does not turn off, or coolant temperature gauge (C) indicates hot, STOP the engine and determine the cause.
