Tow Tractor

1. IMPORTANT: NEVER tow the tractor faster than 16 km/h (10 mph). Have an operator steer and brake tractor.

   IMPORTANT: To avoid damaging transmission-hydraulic system, observe the following precautions:

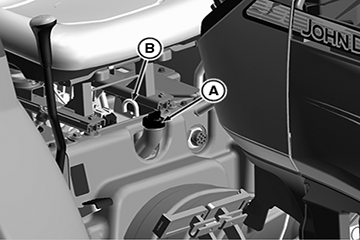

   APY08251-UN-10JUL18

   A - Transmission-Hydraulic Oil Filler Cap

   B - Dipstick, Transmission-Hydraulic Oil

   Be sure that transmission-hydraulic system oil is to the full level line on dipstick (B). If the tractor is towed with the front wheels raised, add 1 liter of oil to port by removing transmission-hydraulic oil filler cap (A) for each 90 mm (3-1/2 in), raising of the wheels. DO NOT raise front wheels more than 305 mm (12 in) above ground.

   NOTE: After transporting tractor, drain oil that was added for towing.

---




2. Make sure that the gearshift lever, range shift lever, forward-reverse lever, and PTO lever are in neutral.

   Also MFWD lever is disengaged.
