Measure Wheel Slip—Manually

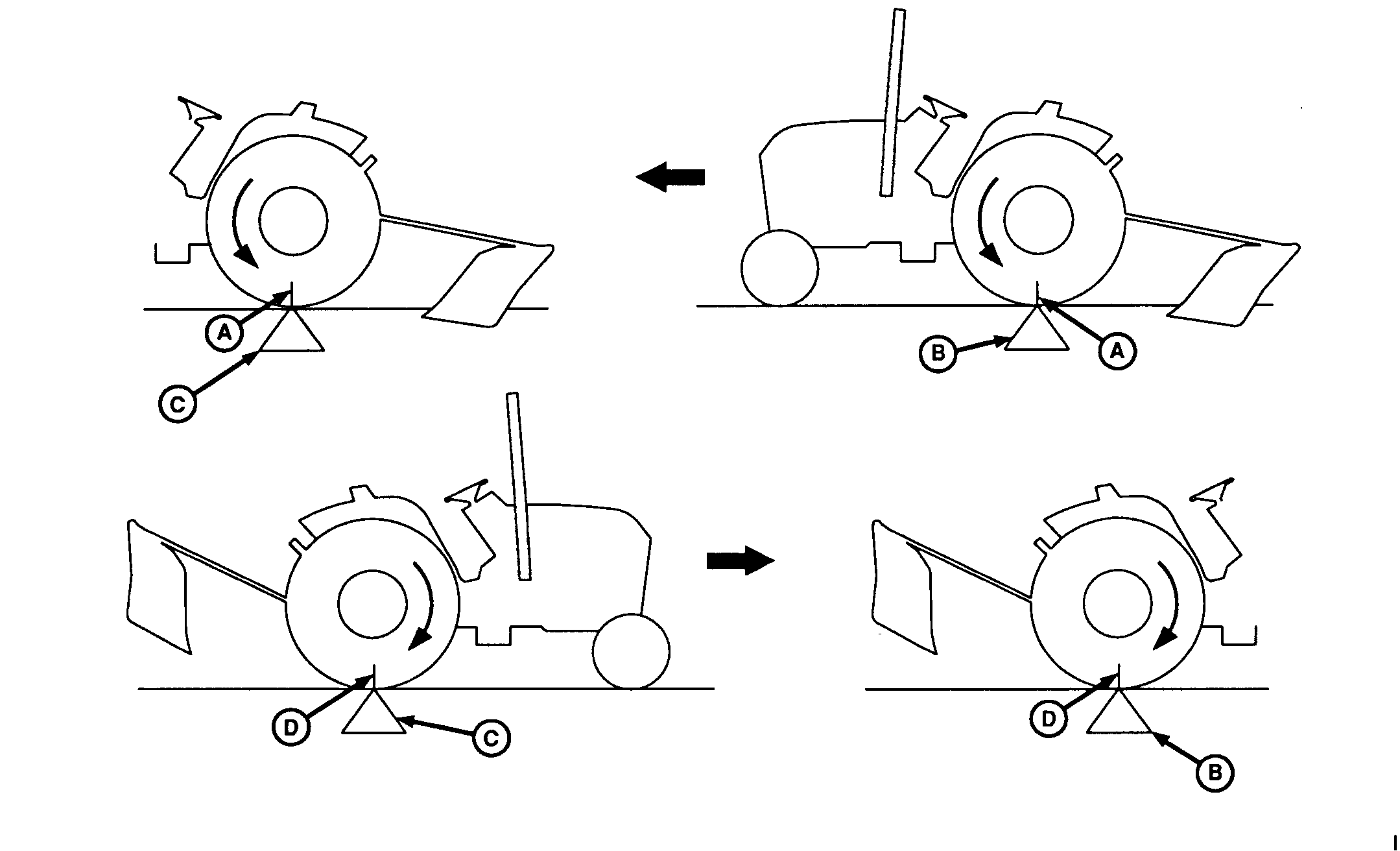

LV733-UN-25JUN94

A - Tire Mark

B - Starting Point

C - Marking After 10 Revolutions

D - Marking in Opposite Direction

1. Place a mark (A) on a rear tire which is easily observed (a chalk mark is recommended).

2. With tractor working and implement lowered, mark a starting point (B) on the ground at the place where the tire mark (A) meets the ground.

3. Mark the ground again where the tire mark (A) completes 10 full revolutions (C).

4. With implement raised return in the opposite direction. At the second mark on the ground (C) remark the tire (D).

5. While driving the tractor along the same path (implement raised), count the tire revolutions required to reach the starting point (B).

6. Use the return tire revolutions count and wheel slippage chart to determine slippage. 10—15 % is ideal.

7. Adjust ballast or load to give correct slippage.

   NOTE: Available horsepower is greatly reduced when wheel slip drops below 10 %.

   WHEEL SLIPPAGE CHART
   Non-Loaded Wheel Revolutions (Step 5)	Estimated % Slip	Recommended Action
   10	0	Remove Ballast
   9-1/2	5	Remove Ballast
   9	10	Proper Ballast
   8-1/2	15	Proper Ballast
   8	20	Add Ballast
   7-1/2	25	Add Ballast
   7	30	Add Ballast
