Engine Cooling System

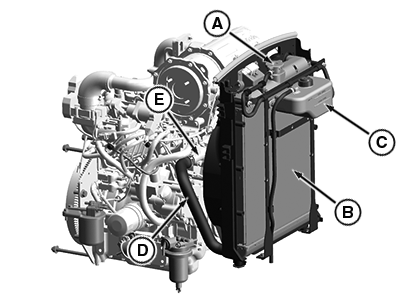

PY47370-UN-24AUG17

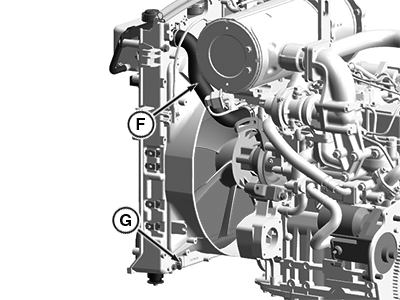

PY47371-UN-24AUG17

A - Radiator Cap

B - Radiator

C - Coolant Recovery Tank

D - Lower Radiator Hose

E - Engine Coolant Pump

F - Upper Radiator Hose

G - Radiator Drain Plug

Coolant is added in a coolant recovery tank and not in radiator directly. For efficient operation, drain old coolant, flush entire cooling system at least once in a year.

IMPORTANT: Never pour cold water into the cooling system of a hot engine, as it might crack cylinder block or head. DO NOT operate engine without coolant for even a few minutes.

NOTE: Clean radiator if conditions are very dusty. Failure to clean leads to improper flow of coolants through radiator which leads to a temperature increase of coolants.
