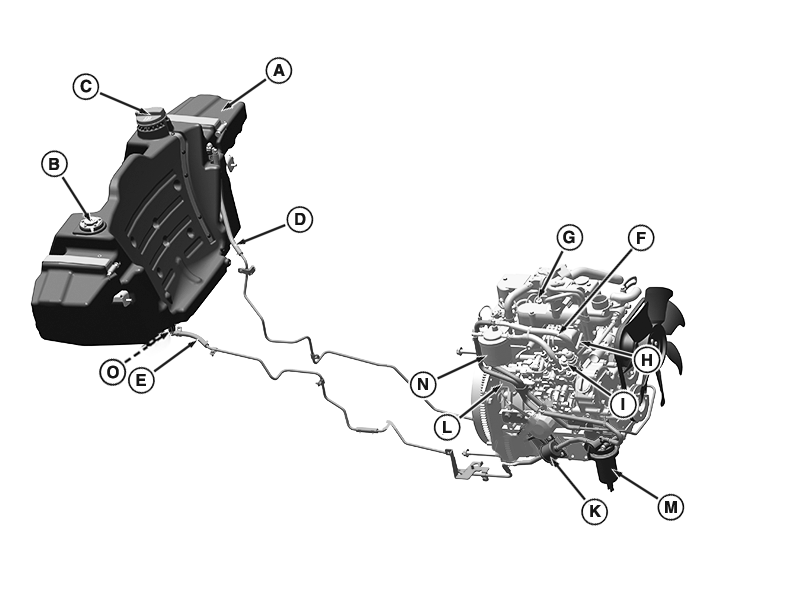

Fuel System Components (For 3025D)

APY02485-UN-05JUN18

A - Fuel Tank

B - Fuel Level Sensor

C - Fuel Filler Cap

D - Return Fuel Line Hose

E - Tank to Filter Inlet Hose

F - Fuel Filter to Injector Pump Hose

G - Injector Nozzle (3 used)

H - Cold Start Advance Hose to Water Pump

I - Injector Pump

K - Fuel Transfer Pump

L - Rack Actuator

M - Water Separator

N - Fuel Filter

O - Fuel Tank Strainer
