Change Transmission-Hydraulic Oil Filter

1. IMPORTANT: Change transmission-hydraulic oil filter every 400 hours of operation thereafter.

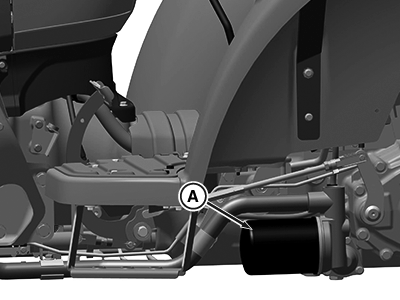

   APY02428-UN-22DEC17

   A - Transmission-Hydraulic Oil Filter

   Park the tractor on a level surface with the engine shut off and apply the park brake.

---




2. Remove transmission-hydraulic oil filter (A) with the help of oil filter wrench.

3. Apply a film of oil to new O-ring and install new filter. Hand tighten plus 1/2 turn with the oil filter wrench.

4. Run engine several seconds and recheck transmission-hydraulic oil level.

5. Add transmission-hydraulic oil if necessary. See Fuels, Lubricants, and Coolant section.

   NOTE: Add Low Viscosity Hy-Gard™ or equivalent.
