Selecting Front Tire Rolling Direction
PY23069-UN-22JAN15

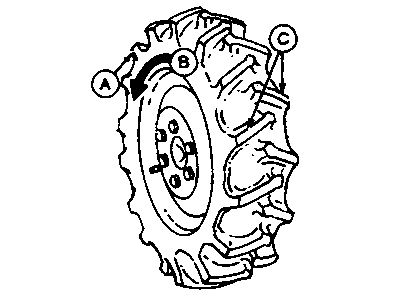

Left Tire (Viewed From Rear)
A - Front Tires (viewed from rear)
B - Rolling Direction of Tire
C - Tire Lugs
(1)—Under most conditions, front tires (A) should be mounted with the direction of tire lugs (C) the same as the tire rolling direction (B).|
DP97633,00000FC-19-20180115 |
