Change Transmission-Hydraulic Oil and Filter

IMPORTANT: Change transmission oil every 1200 hours or 3 years of operation, whichever is earlier. Replace the transmission-hydraulic oil filter at the same time.

1. Park the tractor on a level surface with the engine shut off and the park brake ON.

2. Lower the implement to the ground to remove trapped oil.

3.
   PY47345-UN-21AUG17


   APY02445-UN-16JAN18


   PY23303-UN-25FEB15

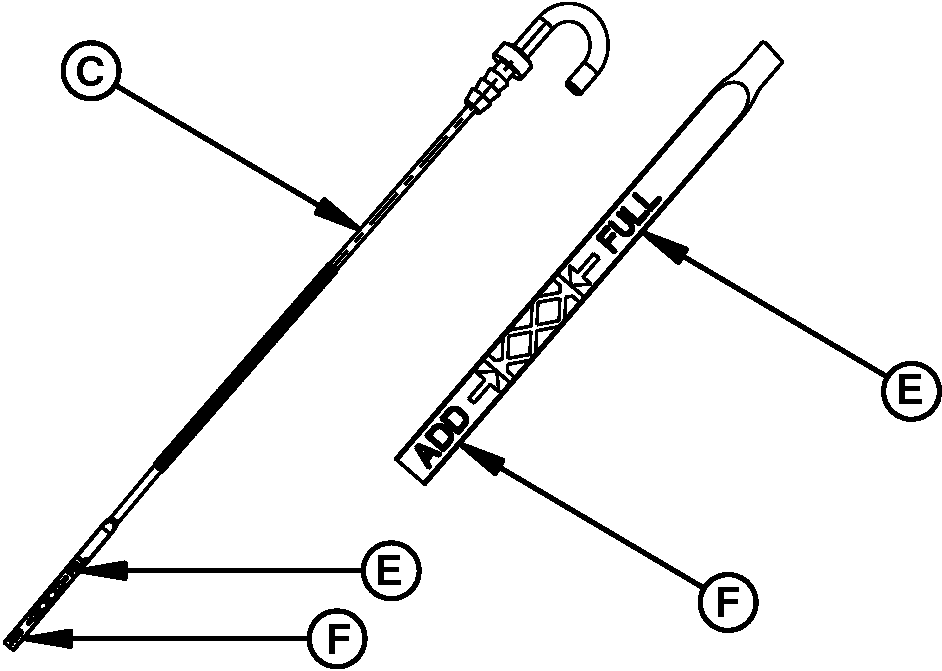

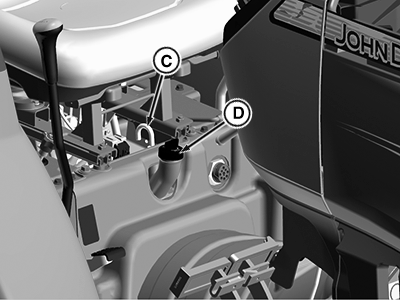

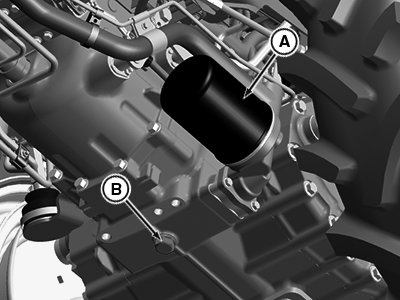

   A - Transmission-Hydraulic Oil Filter

   B - Drain Plug, Transmission Case

   C - Dipstick, Transmission-Hydraulic Oil

   D - Transmission Oil Filler Cap

   E - Full Mark

   F - Add Mark

   Remove transmission case drain plug (B) and drain oil into the suitable container.

---




4. Reinstall drain plug (B) as per specification.

   Item	Measurement	Specification
   Torque		50±10 N·m (36.87 lb.ft.)

5. NOTE: Always replace transmission-hydraulic oil filter (A) while changing transmission-hydraulic oil.

   Remove transmission-hydraulic oil filter (A) with the help of oil filter wrench.

6. Apply a film of oil to new filter O-ring and install new transmission-hydraulic oil filter (A). Hand tighten plus 1/2 turn with the oil filter wrench.

7. Open transmission oil filler cap (D) and fill system with transmission-hydraulic oil. See Fuels, Lubricants and Coolant section.

8. Check oil level on dipstick (C) after filling oil. Oil level should be up to full level mark (E) as shown. Add transmission-hydraulic oil if necessary.

   IMPORTANT: Avoid damage! DO NOT overfill oil in transmission. Oil expands during operation and could overflow.

   NOTE: Transmission oil can be changed every 1200 hours or 3 years if the following requirements are met:

   • Use John Deere Hy-Gard™ or Lo-Vis Hy-Gard oil.
   • Suction and transmission filter are both changed every 400 hours.
   • Perform oil-scan of transmission oil every 400 hours or once per year.
