Remove Hood

1.
   PY44498-UN-11AUG17


   APY07665-UN-03JUL18

   A - Hood Latch Release

   B - Hood

   C - Lock Nut (4 Used)

   D - Hood Pivot (2 Used)

   E - U- Bolt (2 Used)

   F - Hood Stay Rod

   Push hood latch release (A) button to unlock hood.

---




2. Raise hood (B) which is supported by the hood stay rod (F).

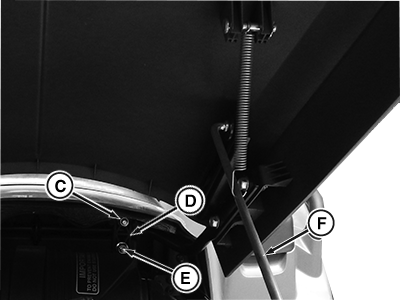

3. Remove lock nuts (C), hood pivots (D) and U-bolts (E).

4. Remove hood stay rod (F).

5. Remove complete hood assembly from tractor.

   IMPORTANT: To prevent the U-bolts from falling into the front console, hand tighten the lock nuts (C) to the U-bolt (E) after removal of hood assembly.
