Open Hood

1.
   PY44498-UN-11AUG17


   APY07666-UN-04JUL18

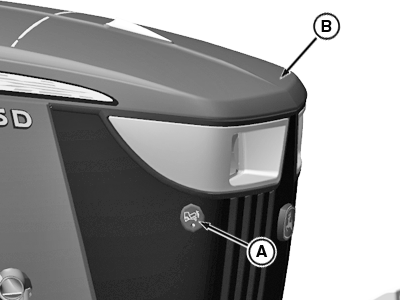

   A - Hood Latch Release

   B - Hood

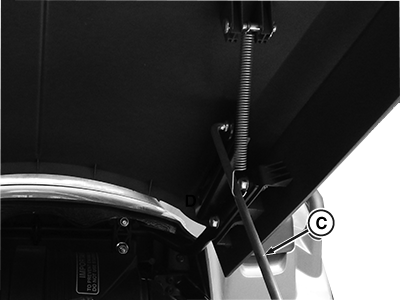

   C - Hood Stay Rod

   Park machine safely.

---




2. Push hood latch release (A) button to unlock hood.

3. Raise hood (B) which is supported by the hood stay rod (C).
