Attach PTO-Driven Implement

1. CAUTION: STOP engine before attaching implement or working in the area of the implement hitch.

   NOTE: If PTO-driven implement is attached to drawbar (B), the drawbar must be positioned such that there is appropriate distance between end of PTO shaft and center of the drawbar pin hole.

   There are two holes at the front of the drawbar (B). Place the drawbar pin (C) in the second hole for the proper 350 mm length (A).

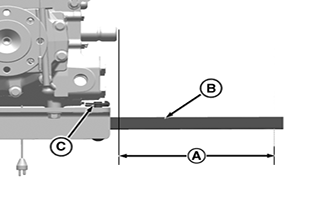

   APY08248-UN-10JUL18

   A - PTO Shaft to Pin Hole Distance

   B - Drawbar

   C - Pin

   Attach implement to tractor before connecting PTO drive line. Raise hitch to upward position if it is not to be used.

---




2. Shift gear lever in NEUTRAL, key to OFF position and set brakes.

3. Make sure that drawbar locking pins and spring pins are in place. If implement is connected to 3-point hitch, be sure that drawbar does not interfere. Remove it if necessary.

4. Rotate PTO shield upward for clearance. With engine OFF, turn shaft slightly by hand if necessary to line up splines. Connect drive line to PTO shaft. Pull out on shaft to be sure that drive line is locked to PTO shaft. Place PTO shield in downward position.

5. Be sure that all shields are in place and in good condition. Operate PTO only if master shield is properly installed.

6. With engine stopped, check integral shields on the driveline by making sure that they rotate freely on shaft. Lubricate or repair as necessary.

7. Check carefully for any interference, make sure that hitch is raised to the upper position if it is not used.
