Adjusting Drawbar Length

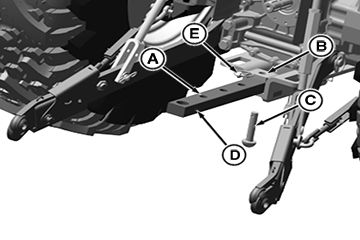

APY08246-UN-01AUG18

A - Hole, RETRACTED (short) Drawbar Position

B - Hole, EXTENDED Drawbar Position

C - Retaining Pin

D - Drawbar

E - Quick Lock Pin

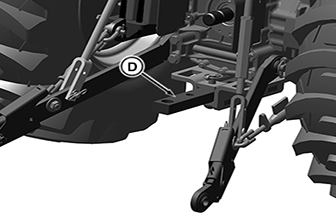

APY08247-UN-10JUL18

Drawbar At Normal Position

D - Drawbar

Hole (A): Short position

Hole (B): Exteneded position

1. Remove quick lock pin (E) and retaining pin (C) from the drawbar (D).
2. Slide drawbar (D) forward or rearward to desired position.
3. Align either of four holes and install the retaining pin.
