Tractor Lubrication Points

APY07624-UN-21MAY18

Clutch and Brake Pedal

PY49479-UN-21DEC17

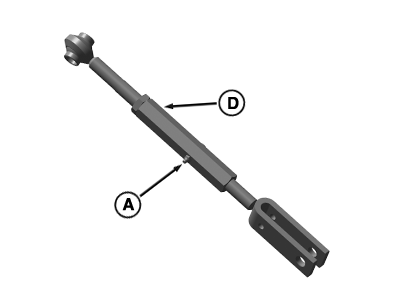

Center Link

A - Greasing Point

B - Clutch Pedal

C - Brake Pedal

D - Center Link

PY49480-UN-22DEC17

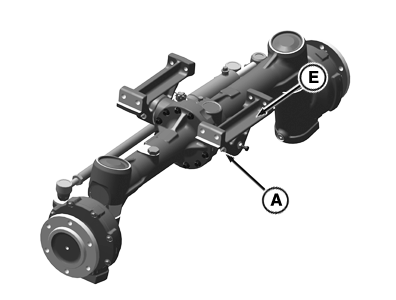

Light-Duty Front Trunnion, MFWD Axle

PY49481-UN-21DEC17

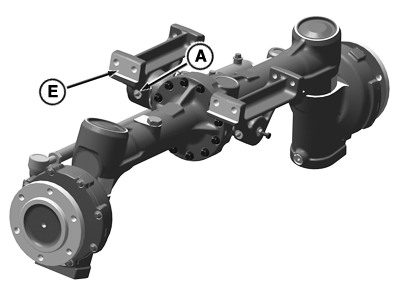

Light-Duty Rear Trunnion, MFWD Axle

A - Greasing Point

E - Front & Rear Trunnion, MFWD Axle
