Lubricate Clutch and Brake Pedal

1.

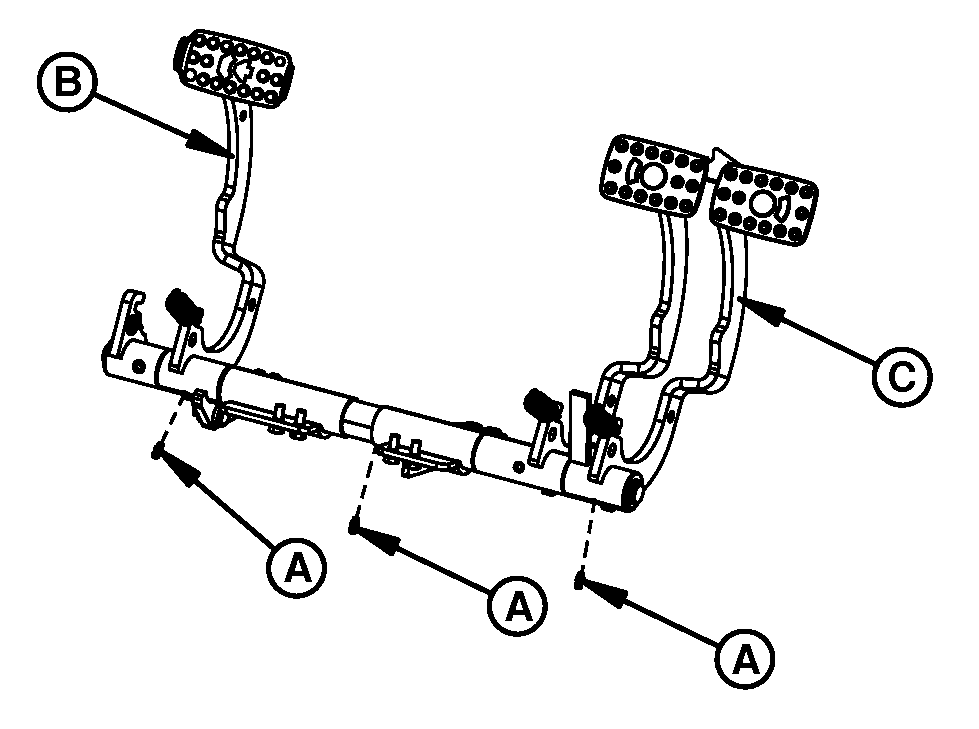

   APY07624-UN-21MAY18

   A - Greasing Point

   B - Clutch Pedal

   C - Brake Pedal

   Park the tractor on a level surface. Engage park brake.

---




2. Lubricate clutch pedal (B), brake pedals (C) with multi-purpose grease.

3. Apply several shots of multi-purpose grease at the greasing points (A). See Fuels, Lubricants, and Coolant section.
