Use Headlights

APY02421-UN-22DEC17

APY02422-UN-22DEC17

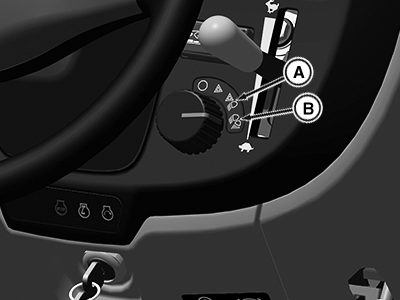

A - Low Beam Headlights, Hazard/Warning Lights

B - Low Beam Headlights, Work Lamp

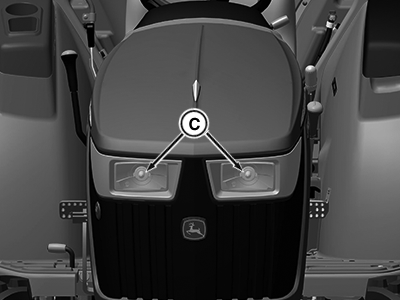

C - Headlights

CAUTION: Avoid injury! DO NOT operate on roads with the light switch in the field position. Rear work lights can confuse operators of oncoming vehicles.

With the key switch in OFF position, you can view hour meter in the instrument panel by turning the headlights switch to hazard/warning lights (A) or work lamp (B) position.

Keep headlights (C) adjusted properly. See Service Adjust Headlights (section 140) in this manual.
