Replace Engine Oil and Engine Oil Filter

IMPORTANT: Change engine oil after every 400 hours of operation. Replace the engine oil filter at the same time.

1.
   PY22047-UN-04MAR15

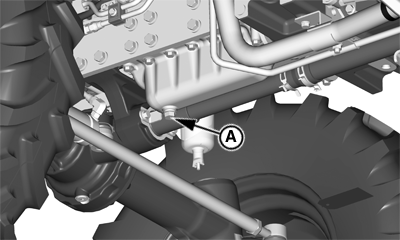

   A - Engine Oil Drain Plug


   APY02482-UN-01AUG18

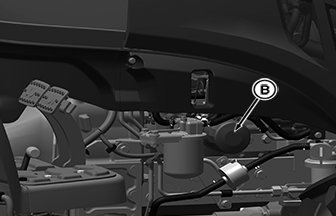

   B - Engine Oil Filter


   PY22046-UN-14NOV14

   Run engine for few minutes to warm engine oil.

---




2. Park the tractor on a level surface with engine shut off. Apply the park brake with implement lowered to the ground.

3. Remove engine oil drain plug (A) and drain oil.

4. Remove engine oil filter (B). Turn filter counterclockwise to remove.

5. Apply a film of clean engine oil on rubber gasket of the new filter. Install new engine oil filter (B). Turn filter to the right until gasket contacts with the mounting surface. Tighten 1/2 to 3/4 turn after gasket contact.

6. Install and tighten engine oil drain plug (A) as per specification.

   Item	Measurement	Specification
   Drain Plug	Torque	54 N·m to 64 N·m

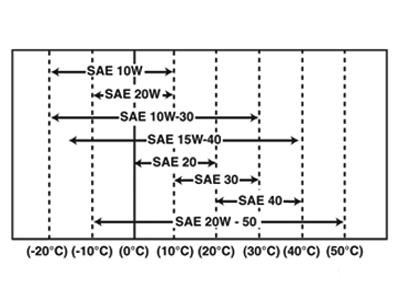

7. Add seasonal viscosity grade oil by removing oil filler cap. For detailed information see Fuels, Lubricants and Coolant section.

   Item	Measurement	Specification
   Engine Oil Pan Capacity	Capacity—Dipstick Upper Limit / Dipstick Lower Limit	4.3 L (4.54 qt) 2.3 L (2.43 qt)

8. Start engine and run at a slow speed and check for leaks.

9. Stop engine and check engine oil level. For detailed information, refer to Check Engine Oil Level in section Service - Daily/Every 10 Hours.
