Replace Headlight Bulb

IMPORTANT: Avoid damage! Do not touch glass headlight bulb with bare skin. Contact with bare skin could cause bulb to fail prematurely. Use gloves or a cloth when inspecting or replacing the bulb.

  1. Park machine safely.

  2. Raise hood.

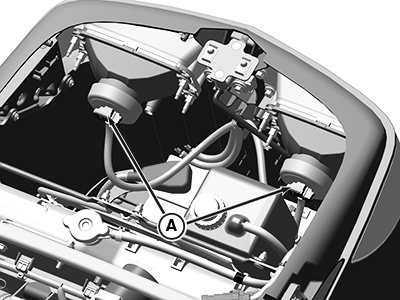

  3. PY38991
    PY38991-UN-17JUL17

    A - Headlight Bulbs

    Remove connector from the base of headlight bulbs (A).


  4. Rotate base counterclockwise to remove bulb assembly from the housing.

  5. Insert new bulbs in the housing and turn clockwise to secure.

  6. Insert connector into the base of bulb.

  7. Lower hood.

  8. Check operation of headlights.

DP97633,00001B3-19-20180529
