Replace Tail/Turn Light Bulb

NOTE: Tail light can be serviced by removing the rear assembly lens only.

  1. Park the machine safely.

  2. LVAL38748
    LVAL38748-UN-05OCT12

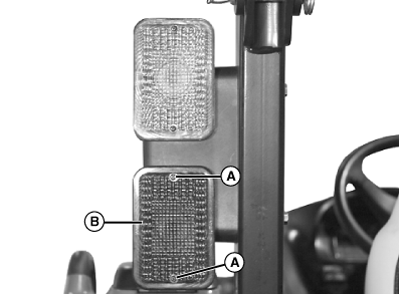

    A - Screws

    B - Lens

    Remove two screws (A) and red lens (B).


  3. LVAL38749
    LVAL38749-UN-05OCT12

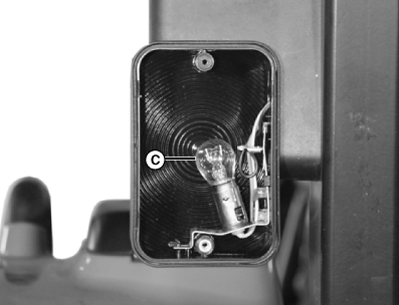

    C - Bulb

    Push down and rotate bulb (C) to remove. Do not twist bulb.


  4. Push down and rotate new bulb into socket.

  5. Check operation of taillights and turn signals.

  6. Install lens and screws.
