Replace Work Lamp Bulb

1.

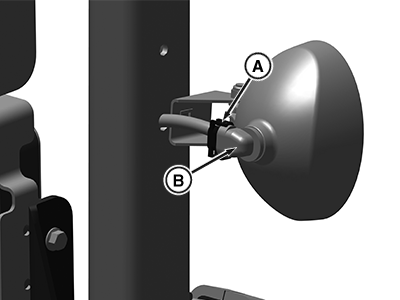

   APY07606-UN-02MAY18

   A - Electrical Connector

   B - Work Lamp Connector

   Remove electrical connector (A) from work lamp connector (B).

---




2. Remove old bulb by removing work lamp connector (B) and replace with a new bulb.

3. Connect electrical connector (A) to the work lamp connector (B).
