Clean Air Cleaner Element

For 3025D

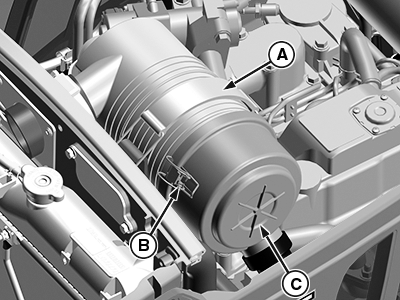

PY38976-UN-17JUL17

A - Hold Down Strap

B - Latch

C - Cover

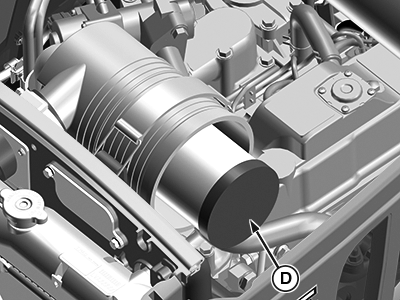

PY38977-UN-17JUL17

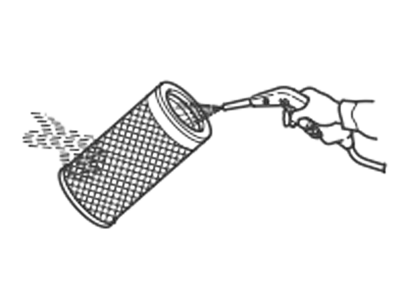

PY22086-UN-08DEC14

D - Primary Filter Element

The engine performance is adversely affected when the air cleaner element is clogged with dust. Be sure to clean the air filter element periodically.

1. Open hood.

2. Remove hold down strap (A).

3. Release latches (B) and remove cover (C) from the side.

4. Rotate the primary filter (D) counterclockwise by ¼ turn to remove. Do not use excessive force. If filter does not pull out with ease, move side-to-side to remove safely.

5. CAUTION: Always wear eye protection when servicing the engine and when using compressed air or high-pressure water. Dust, flying debris, compressed air, pressurized water, or steam can injure your eyes.

   CAUTION: Avoid injury! Compressed air can cause debris to fly a long distance. Wear eye protection when using compressed air for cleaning purposes. Reduce compressed air pressure to 210 kPa (30 psi).

   Remove the dust without damaging the primary filter element (D).

6. Clean inner side of the air cleaner cover (C).

7. Reinstall the primary filter element (D) into the air cleaner case.

8. Reinstall the air cleaner cover (C).

9. Secure the latches (B) on the air cleaner cover (C).

10. Reinstall hold down strap (A).

For 3035D

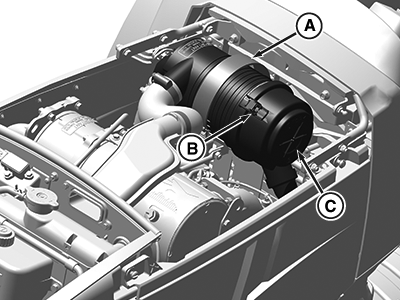

PY49611-UN-02NOV17

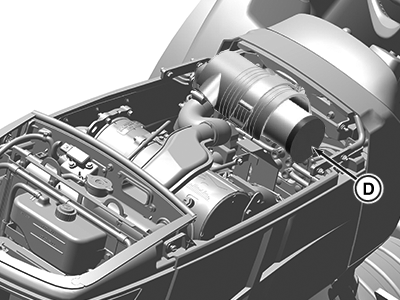

PY49615-UN-03NOV17

A - Hold Down Strap

B - Latch

C - Cover

D - Primary Filter Element

PY22086-UN-08DEC14

The engine performance is adversely affected when the air cleaner element is clogged with dust. Be sure to clean the air filter element periodically.

1. Open hood.

2. Remove hold down strap (A).

3. Release latches (B) and remove cover (C) from the side.

4. Rotate the primary filter element (D) counterclockwise by ¼ turn to remove. Do not use excessive force. If filter does not pull out with ease, move side-to-side to remove safely.

5. CAUTION: Always wear eye protection when servicing the engine and when using compressed air or high-pressure water. Dust, flying debris, compressed air, pressurized water, or steam can injure your eyes.

   CAUTION: Avoid injury! Compressed air can cause debris to fly a long distance. Wear eye protection when using compressed air for cleaning purposes. Reduce compressed air pressure to 210 kPa (30 psi).

   Remove the dust without damaging the primary filter element (D).

6. Clean inner side of the air cleaner cover (C).

7. Reinstall the primary filter element (D) into the air cleaner case.

8. Reinstall the air cleaner cover (C).

9. Secure the latches (B) on the air cleaner cover (C).

10. Reinstall hold down strap (A).

For 3043D

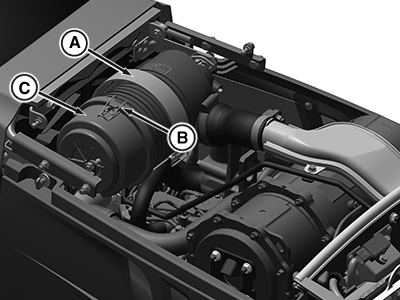

APY07660-UN-29JUN18

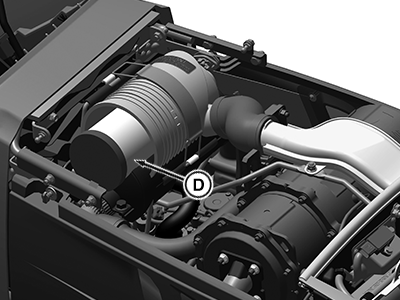

APY07661-UN-29JUN18

PY22086-UN-08DEC14

A - Hold Down Strap

B - Latch

C - Air Filter Canister Cover

D - Primary Filter Element

1. Open hood.

2. Remove hold down strap (A).

3. Release latches (B) and remove air filter canister cover (C) from the side.

4. Rotate the primary filter element (D) counterclockwise by ¼ turn to remove. Do not use excessive force. If filter does not pull out with ease, move side-to-side to remove safely.

5. CAUTION: Always wear eye protection when servicing the engine and when using compressed air or high-pressure water. Dust, flying debris, compressed air, pressurized water, or steam can injure your eyes.

   CAUTION: Avoid injury! Compressed air can cause debris to fly a long distance. Wear eye protection when using compressed air for cleaning purposes. Reduce compressed air pressure to 210 kPa (30 psi).

   Remove the dust without damaging the primary filter element (D).

6. Clean inner side of the air cleaner cover (C).

7. Reinstall the primary filter element (D) into the air cleaner case.

8. Reinstall the air filter canister cover (C).

9. Secure the latches (B) on the air filter canister cover (C).

10. Reinstall hold down strap (A).
