Clean Water Separator

Periodically clean the water separator element and also inside the cup.

1.

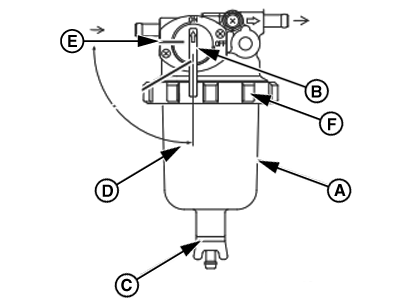

   PY22091-UN-09DEC14


   PY22092-UN-09DEC14

   A - Cup, Water Separator

   B - Fuel Cock

   C - Drain Cock

   D - Fuel Cock-ON

   E - Fuel Cock-OFF

   F - Retaining Ring

   G - Float Ring

   H - Element, Cup

   Position an approved container under the cup of water separator (A) to collect the contaminants.

---




2. Turn the fuel cock (B) from ON position (D) to OFF position (E).

3. Loosen the drain cock (C) and drain the contaminants.

4. Turn the retaining ring (F) to the left and remove the cup.

5. Carefully hold the cup of water separator (A) to prevent fuel from spilling. If you spill any fuel, clean up the spill completely.

6. Remove the float ring from the cup. Pour the contaminants into the container and dispose of it properly.

7. Clean the element (H) and inside cup of water separator (A). Replace the element (H) if it is damaged.

8. Install the element (H) and O-ring in the bracket.

9. Position the float ring (G) in the cup of water separator (A).

10. Check the condition of the O-ring. Replace if necessary.

11. Install the cup to the bracket by tightening the retaining ring (F) to the right to 15 - 20 N·m (11 - 15 lb·ft, 1.5 - 2.0 kgf/m).

12. Close the drain cock (C).

13. Open the fuel cock (B).
