Adjust PC Lever Operating Efforts
PY45770-UN-23AUG17

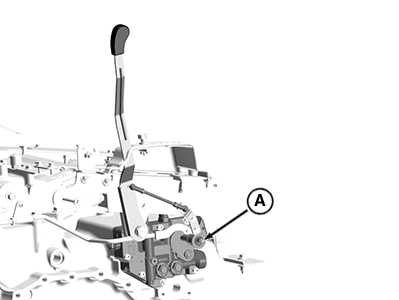

A - Nut
In order to increase the PC Lever efforts, rotate the nut (A) clockwise and to decrease the PC Lever efforts rotate the nut counterclockwise.
DP97633,00001C1-19-20180529
