Check Coolant Level

1. CAUTION: Remove radiator cap (A) only when engine is cold. Slowly loosen cap to first stop to relieve pressure before removing completely.

   NOTE: Clean radiator in most dusty conditions. Failure to clean leads to improper flow of coolants through radiator which leads to a temperature increase of coolants.

   Park tractor on level ground before checking coolant level.

2. Raise hood.

   NOTE: ALWAYS check engine coolant level by observing the coolant recovery tank (E).

3.
   TS281-UN-15APR13


   PY45757-UN-24AUG17

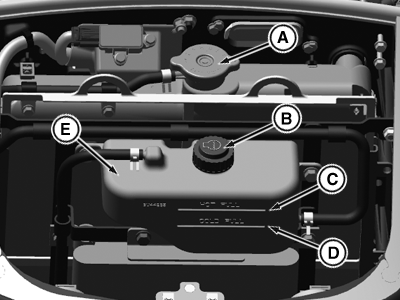

   A - Radiator Cap

   B - Cap, Coolant Recovery Tank

   C - Hot Full

   D - Cold Full

   E - Coolant Recovery Tank

   Check coolant level:
   • If engine is warm, coolant level must be between the hot full mark (C) and the cold full mark (D) on coolant recovery tank (E).
   • If engine is cold, coolant level must be at the cold full (D) on the coolant recovery tank (E).



---




4. If coolant is low, remove cap (B) to add coolant. Add specified ratio of antifreeze and water.

   IMPORTANT: Avoid damage! To prevent engine damage:

   • DO NOT operate engine without coolant.
   • DO NOT pour coolant into the radiator when the engine is hot.
   • To prevent engine overheating, never exceed more than 50% antifreeze in cooling system.



5. Install and tighten the coolant recovery tank cap (B).
