Service Air Filter Elements

CAUTION: Avoid injury! Touching hot surfaces can burn skin. The engine, components, and fluids are hot if the engine has been running. Allow the engine to cool before servicing or working near the engine and components.

IMPORTANT: Avoid damage! Dirt and debris can enter the engine through a damaged filter element.


For 3025D

  1. PY38976
    PY38976-UN-17JUL17

    PY38977
    PY38977-UN-17JUL17

    APY02446
    APY02446-UN-17JAN18

    A - Hold Down Strap

    B - Latch

    C - Air Filter Canister Cover

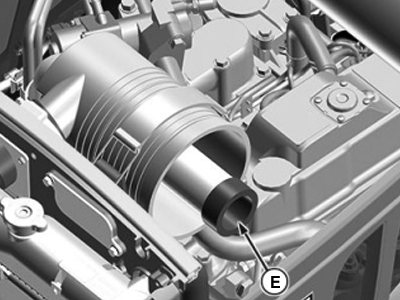

    D - Primary Filter Element

    E - Secondary Filter Element

    Park machine safely.


  2. Allow engine to cool.

  3. Raise hood.

  4. Remove hold down strap (A).

  5. Tilt up canister and release latches (B) and remove air filter canister cover (C).

  6. IMPORTANT: Avoid damage! Secondary filter element does not need routine replacement. Visually inspect it without removing from canister. Do not attempt to clean secondary filter element. If secondary filter element is replaced, install new primary and secondary filter element immediately to prevent dust from entering the air intake system.

    Remove and discard primary filter element (D).

  7. Remove and discard secondary filter element (E). Replace with a new secondary filter element.

  8. Install new primary filter element (D).

  9. Install air filter canister cover (C).

  10. Position canister back in place and install hold down strap (A).

  11. Lower hood.


For 3035D

  1. PY49611
    PY49611-UN-02NOV17

    PY49615
    PY49615-UN-03NOV17

    APY02447
    APY02447-UN-17JAN18

    A - Hold Down Strap

    B - Latch

    C - Air Filter Canister Cover

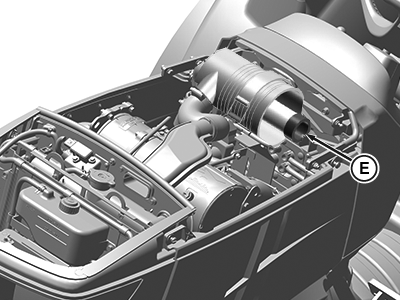

    D - Primary Filter Element

    E - Secondary Filter Element

    Park machine safely.


  2. Allow engine to cool.

  3. Raise hood.

  4. Remove hold down strap (A).

  5. Tilt up canister and release latches (B) and remove air filter canister cover (C).

  6. IMPORTANT: Avoid damage! Secondary filter element does not need routine replacement. Visually inspect it without removing from canister. Do not attempt to clean secondary filter element. If secondary filter element is replaced, install new primary and secondary filter element immediately to prevent dust from entering the air intake system.

    Remove and discard primary filter element (D).

  7. Remove and discard secondary filter element (E). Replace with a new secondary filter element.

  8. Install new primary filter element (D).

  9. Install air filter canister cover (C).

  10. Position canister back in place and install hold down strap (A).

  11. Lower hood.


For 3043D

  1. APY07660
    APY07660-UN-29JUN18

    A - Hold Down Strap

    B - Latch

    C - Air Filter Canister Cover

    APY07661
    APY07661-UN-29JUN18

    APY07662
    APY07662-UN-29JUN18

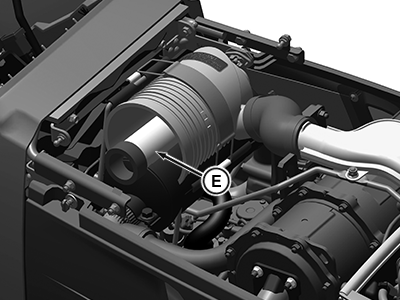

    D - Primary Filter Element

    E - Secondary Filter Element

    Park machine safely.


  2. Allow engine to cool.

  3. Raise hood.

  4. Remove hold down strap (A).

  5. Tilt up canister and release latches (B) and remove air filter canister cover (C).

  6. IMPORTANT: Avoid damage! Secondary filter element does not need routine replacement. Visually inspect it without removing from canister. Do not attempt to clean secondary filter element. If secondary filter element is replaced, install new primary and secondary filter element immediately to prevent dust from entering the air intake system.

    Remove and discard primary filter element (D).

  7. Remove and discard secondary filter element (E). Replace with a new secondary filter element.

  8. Install new primary filter element (D).

  9. Install air filter canister cover (C).

  10. Position canister back in place and install hold down strap (A).

  11. Lower hood.
