Clean Radiator Screen (If Equipped)

1.

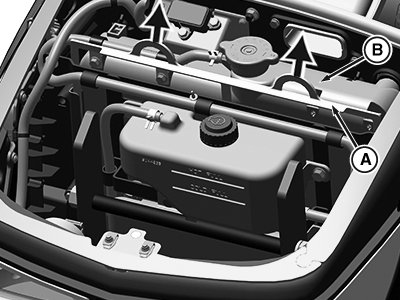

   APY02434-UN-22DEC17

   A - Radiator Screen

   B - Radiator

   Open hood.

---




2. Lift and remove radiator screen (A) on top of radiator.

3. CAUTION: Avoid injury! Compressed air can cause debris to fly a long distance. Wear eye protection when using compressed air for cleaning purposes. Reduce compressed air pressure to 210 kPa (30 psi)

   Clean radiator screen (A) with a brush, compressed air, or water from a hose as necessary.
