Cleaning MFWD Axle Breather

NOTE: If the axle breather is packed with dirt, soak in solvent before blowing air through breather vent. Interval must vary according to operation conditions.

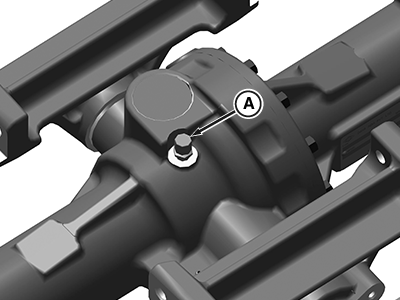

APY07658-UN-29JUN18

A - MFWD Axle Breather

IMPORTANT: Allowing excess dirt and foreign material to build up in the breather may cause damage to axle seals.

Remove MFWD axle breather (A). Clean by blowing air through the breather (bottom to top).
