Check MFWD Axle Front Trunnion Thrust Bolt

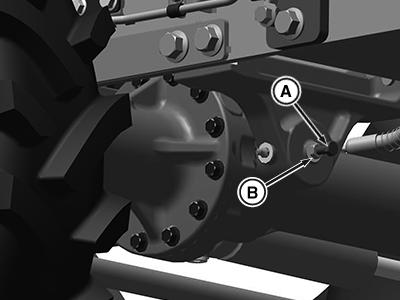

APY07659-UN-29JUN18

A - Thrust Bolt

B - Lock Nut

Axle must be free to float in the trunnions while tightening the thrust bolt (A) and lock nut (B).

Tighten front trunnion thrust bolt (A) and lock nut (B) in the following location to specifications:

Item	Measurement	Specification
MFWD Axle—Front Trunnion Thrust Bolt	Torque	13-15 N·m (10-11 lb·ft)
MFWD Axle—Front Trunnion Lock Nut	Torque	30-35 N·m (22-26 lb·ft)
