Lifting Points for Jacking up the Tractor

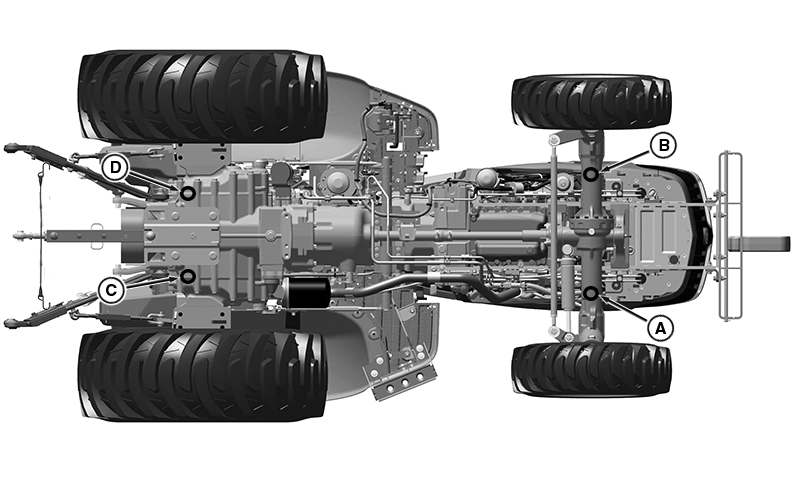

PY48616-UN-11DEC17

.

A - Left Front Wheel Lift Point

B - Right Front Wheel Lift Point

C - Left Rear Wheel Lift Point

D - Right Rear Wheel Lift Point

• A - Raise left end of the axle at this point to remove left front wheel.
• B - Raise right end of the axle at this point to remove right front wheel.
• C - Raise left rear of the tractor at this point to remove left rear wheel.
• D - Raise right rear of the tractor at this point to remove the right rear wheel.

NOTE: Remove front ballast weights before lifting front end of tractor.
