Connect Alternator Wiring

IMPORTANT: Disconnect battery negative (ground) cable before servicing any part of the electrical system. Make all other connections before connecting ground cable.

To prevent damage to the electrical system, disconnect the alternator before making any electrical weld repairs. If an attached implement needs weld repair, disconnect it from tractor before welding, to prevent damage to the tractor electrical system.

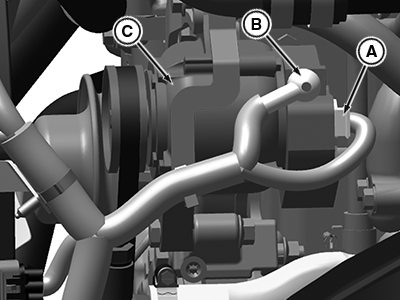

If the alternator is disconnected for any reason, connect wires (A), (B) and (C) as shown at right.

PY47365-UN-24AUG17

A - Battery Terminal

B - Electrical Connector

C - Alternator
