Tighten Bolts— Front Axle

PY47358-UN-23AUG17

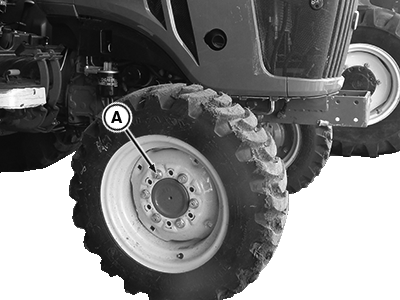

A - Disk-to-Flange Bolts
Tighten disk-to-flange bolts (A) in the following locations
to specifications:
| Item | Measurement | Specification |
|
Front Axle—Disk-to-Flange Bolts | Torque | 140 N·m (103 lb·ft) |
|
|
DP97633,0000254-19-20180803
|
|
